Air Pollution Control
We provide comprehensive pollution control services to help industries manage and minimize their environmental impact. Our solutions include audits and tailored strategies for air, water, and soil pollution. With a focus on sustainability, we aim to empower businesses to operate responsibly while maintaining compliance with regulatory standards.
.jpeg)

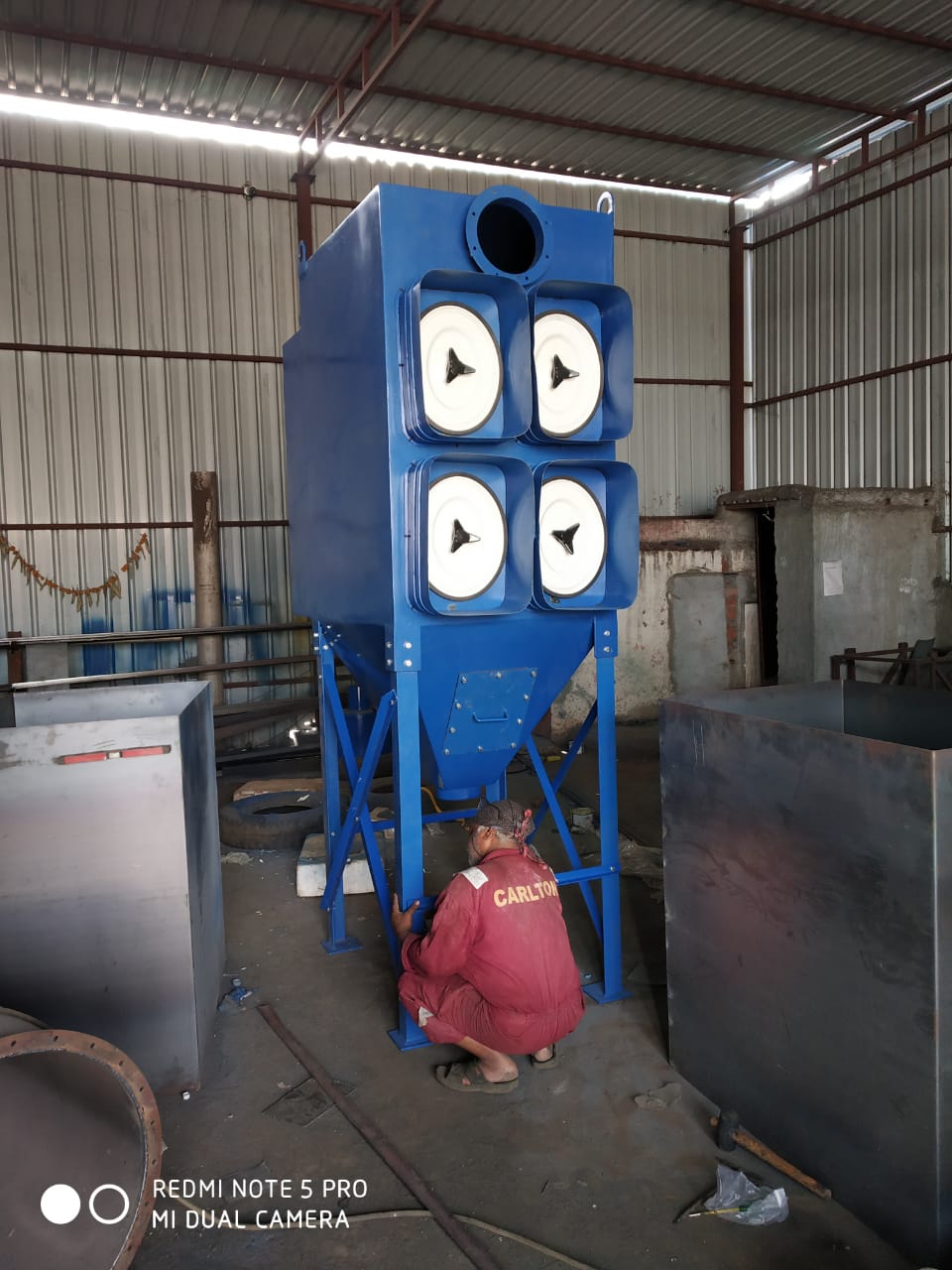

Dust Collectors
RD Engineering and Innovations, offers the widest selection of options available, from small portable dust collectors light-loading applications, to medium and huge sized dust collectors. Dust Collection & Conveying may be given with different media options like bag type and cartridge type dust collectors.
Specifications:
Type - Cartridge Dust Collectors
Capacity - 500 CMH to 75,000 CMH
Temperature - 0 to 250 Deg C
Media - Special Cellulose Base with Nanofiber
media
Specialty - Antistatic and Flame Retardant
Nature
Add on Features - Abrasive Resistant Inlet,
Filter Baffles, Collection Drum, Easy Filter
access, Modular & Strengthened Construction
.jpeg)
Fume Extractors
RD Innovations, offers the widest selection of options available, from small portable fume collectors’ light-loading applications, to medium and huge sized fume collectors. Fume Collection may be given with different media options like bag type and cartridge type dust collectors.
Advantages:
- Low pressure Drop
- 30% lesser space compared to Bag Filters
- Modular Design with add on modules for easy
- future expansion
- Easy setup of the system and less
- maintenance.
- Cost Effective and Compact Units with lesser
- price
- Low compressed air requirement which
- saves on overall energy consumption
.jpg)
Mist Collectors

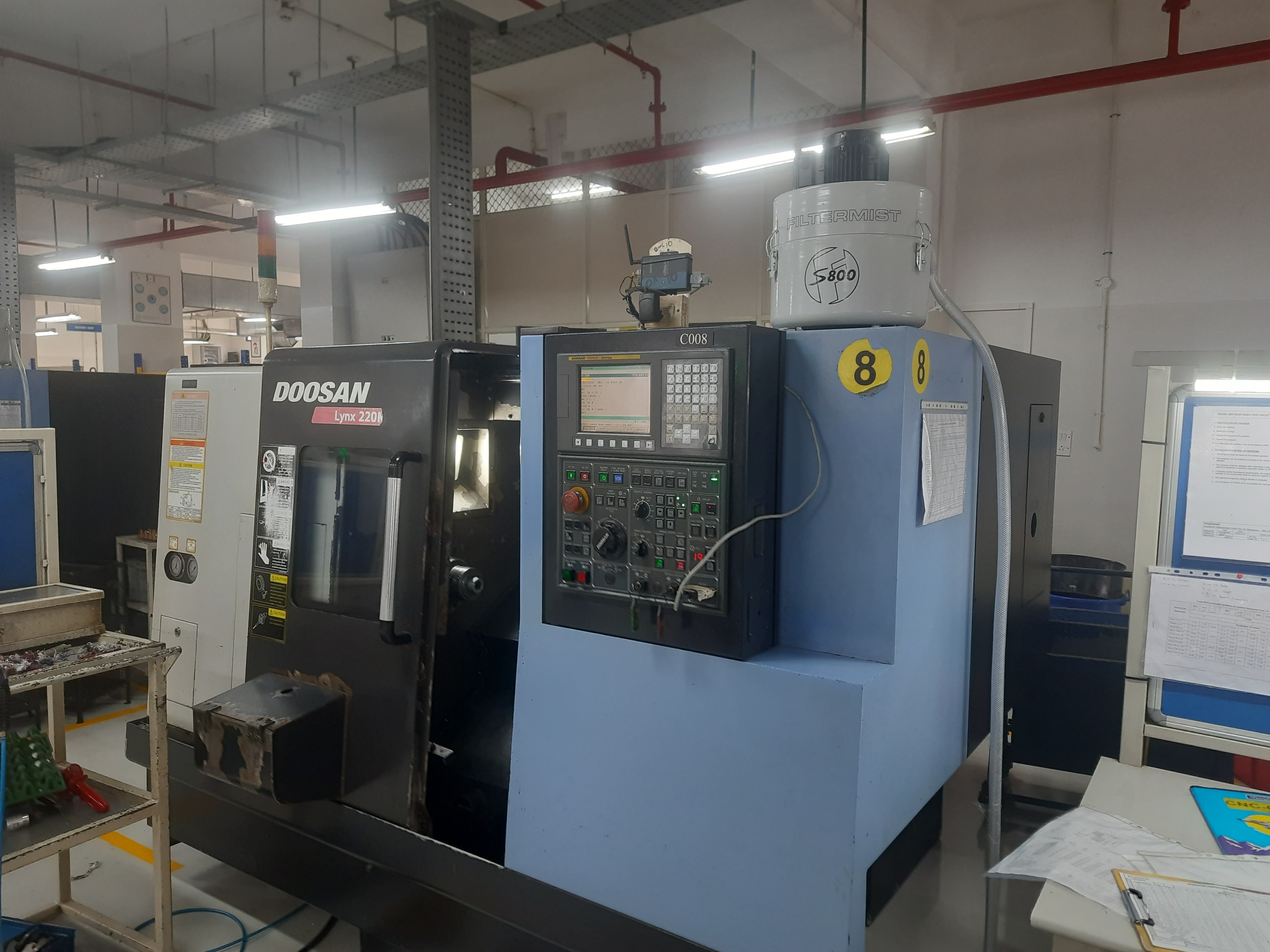

Mist Collectors are essential for manufacturing set up for absorbing mist generated in CNC machines and similar machines. We offer wide range of mist collection systems for single machine top mounted and also centralised systems connecting multiple machines.
How Oil Mist Works?
- Oil mist is removed at source
- Oil mist is removed from the air
- by centrifugal impaction
- Clean oil is returned to machine
- Clean air is returned to workplace
- Smoke and fume can be
- removed and efficiency
- increased with the addition of a
- clip-on after filter
Cyclones
A Cyclone separator is process of removal of particles from air or gas stream through vortex separation method. Rotational effects and centrifugal force are used to separate solids from gas.
Capacity designed up to 5,00,000 m³/hr
Temperature handled up to 1100°C
Pressure to handle till 33 Bar
Outlet Emission < 50mg/Nm³
ATEX Compliance (Optional If Required)
Classifiers
We offer a comprehensive range of classification solutions to meet particle sizing requirement as per your needs. Material enters in the classifier with high velocity, to separate particles at cut point 2 to 300 microns. Our classifier consists with secondary air arrangement to separate the particles according to customer requirement.
Testing Facility: We have developed a test rig to test the material and understand the classification range.

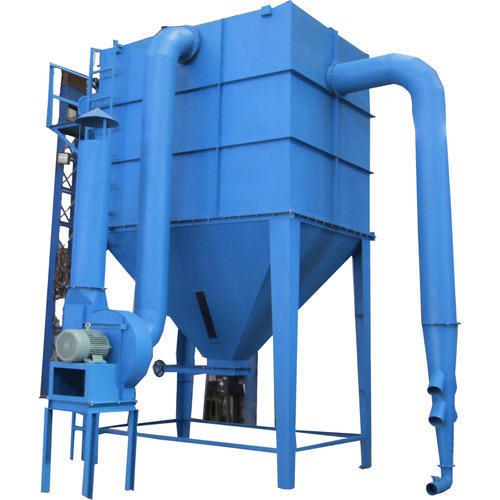

Bag House Collector
We know that industrial applications like yours can be varied and demanding, so our baghouse dust collectors are designed to accommodate a broad range of applications including woodworking, mining, cement, metalworking, steel, food,
pharmaceuticals, and manufacturing, among others.Compliance with air quality and safety regulations is essential for the smooth functioning of your industrial plant. So we engineer our baghouse dust collection systems to not just meet but exceed air quality regulations for optimal plant hygiene and safety.
- Low Maintenance
- Whether Proof
- Fully Automated
- Meets Desired Air Quality
Wet Scrubbers
Scrubbers are the one of the efficient way to filter fumes. In many cases, several technologies must be integrated together to provide adequate removal of nuisance particles and achieve better treatment efficiency. We provide solutions with all type of scrubbers;
Venturi Scrubber: It works on Impaction-Interception-Diffusion Principle for particle collection. The gas stream comes in contact with liquid medium and the pollutants gets transferred to the liquid stream. Thus clean gas leaves scrubber.
Packed Bed Scrubber: The packed bed scrubber works on following two principle;
(1) Absorption – When gas gets absorbed in the scrubbing liquid.
(2) Reaction – When gas reacts with scrubbing liquid.
Multistage Scrubbers: Our experience includes engineering of customized multistage scrubbers utilizing the following combination of equipment. Quench, Venturi, and Packed Tower
Activated carbon filters
Odor Control System is best designed for tapping of Fumes, Smoke, VOC’s, Foul Odor from process and capture the contents to filter out the clean air.
To assure the safety of employees and to achieve the utmost plant efficiency, industrial facilities must implement measures to contain the solid or liquid aerosols and/or vapors that occur as a result of many manufacturing operations. RD Engineering & Innovations provides carbon bed scrubber for the effective collection of fumes/ smoke and chemical fumes and particulate. Capacity of each system are designed according the requirement and built as per the site condition.
Key Features:
- Captures VOC’s
- Eliminates Foul Odour
- Filters Fumes & Smoke
- Discards process residual
Media
Trap
Replace
Blowers & Fans
Blowers/ Fans are categorized by their wheeldesigns, materials of construction and configurations. Wheels can be airfoil, radial or backwardly inclined designs and in carbon steel or stainless steel. Centrifugal fans develop much higher pressures than axial fans and are widely used for industrial processes because of their ability to handle particulate and aggressive chemistry in the airstream.
CAPACITY - 100 TO 1,00,000 CMH
TYPE - CENTRIFUGAL/ BACKWARD VANE
MOUNTING - FLOOR/ UNIT MOUNTED
DRIVE - DIRECT/ BELT DRIVEN
Filter Cartidges
Compact cylindrical filters used in air and fluid filtration systems to trap fine particles and ensure high purity and cleanliness.
Compact
Replaceable
Maintenance
Filter Bags & Cages
Filter bags capture dust inside baghouse collectors, while cages provide structural support to maintain bag shape and performance.
Supportive
Durable
Essential
Chimneys
RD Engineering & Innovations specializes in the design and construction of self supporting steel / stainless chimneys,exhaust stacks, ducting, flues, and silencers for energy, power and process plants.
Exhaust
Vertical
Safe
Ducting & Piping
Ducting and Piping System according to requirement. Design of Ducting according to number of branches and divided according to airflow and velocities. Duct support according to site conditions. Design, Manufacture and Erection of complete duct system
Transport
Custom
Robust
Personal cleaning Booths
RD Engineering & Innovations specializes in the design and construction of self supporting steel / stainless chimneys,exhaust stacks, ducting, flues, and silencers for energy, power and process plants.
Air shower gun – Flexible to handle in any direction
Inbuilt Dust Collector
Inbuilt Blower
Inbuilt Control and Starter Panel
Filter Quality Indicator
Fitted with Air Filter regulator
Filter cleaning systems
Filter Cleaning system is an equipment used for cleaning the filter cartridges used in Dust Collectors. As manual cleaning is not intended for extended filter life, filter cleaning system is designed in well manner to clean the filter dust choked in the pleats of the filter.
Nano fiber Ultrafine Filters
Inbuilt Dust Collector
Inbuilt Blower
Inbuilt Purging valves
Inbuilt Control and Starter Panel

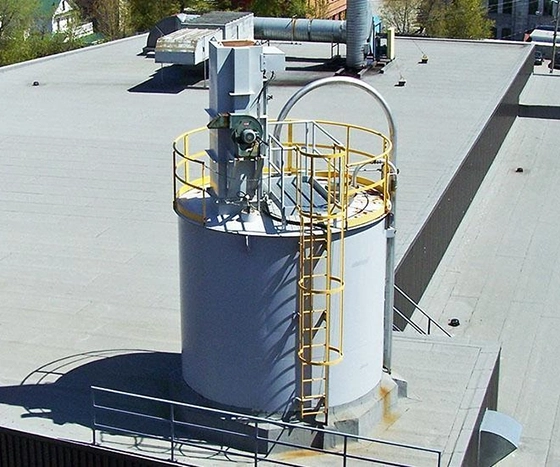

Silo/bin venting collectors
RD Innovations, offers the widest selection of options available, from small Bin top dust collectors to centralized dust collection systems for high dust loading applications
Safety
Cooling
Prevention
Spark Arrestor
Electromechanical devices that control flow in pneumatic or hydraulic systems. Triggered automaticallyA safety device that reduces the temperature of sparks or hot particles in dust extraction systems to prevent fires or explosions.
Safety
Cooling
Prevention
Welding booth and Down Draft Tables
Downdraft tables are used to confine the dust borne collections mainly in the applications like welding, sanding, buffing, grinding, polishing and similar applications. We provide 2 standard models:
RDT1.5 with 5.0kW motor - 1.5X1.0 m bed
RDT2.5 with 7.5kWmotor - 2.5X1.2 m bed
Nanofiber Ultrafine Filters
Inbuilt Spark Trap
Inbuilt Blower
Inbuilt Control and Starter Panel
Filter Quality Indicator
